简介
本文用示例介绍CSS进行九宫格布局的方法。
朋友圈、微博等很多社交平台都是使用九宫格布局来展示图片的，九宫格布局也是前端面试经常会问的问题。
本文只展示自适应布局的方案。不展示手动指定宽度的那种方案。
方案1：grid
grid是专门用来处理二维的，最适合用来二维布局。
代码
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>This is title</title>
<style>
.container {
display: grid;
grid-template-columns: 1fr 1fr 1fr;
grid-template-rows: 100px 100px 100px;
grid-gap: 10px;
padding: 10px;
}
.item {
border: 1px solid black;
</style>
</head>
<body>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</div>
</body>
</html>
|

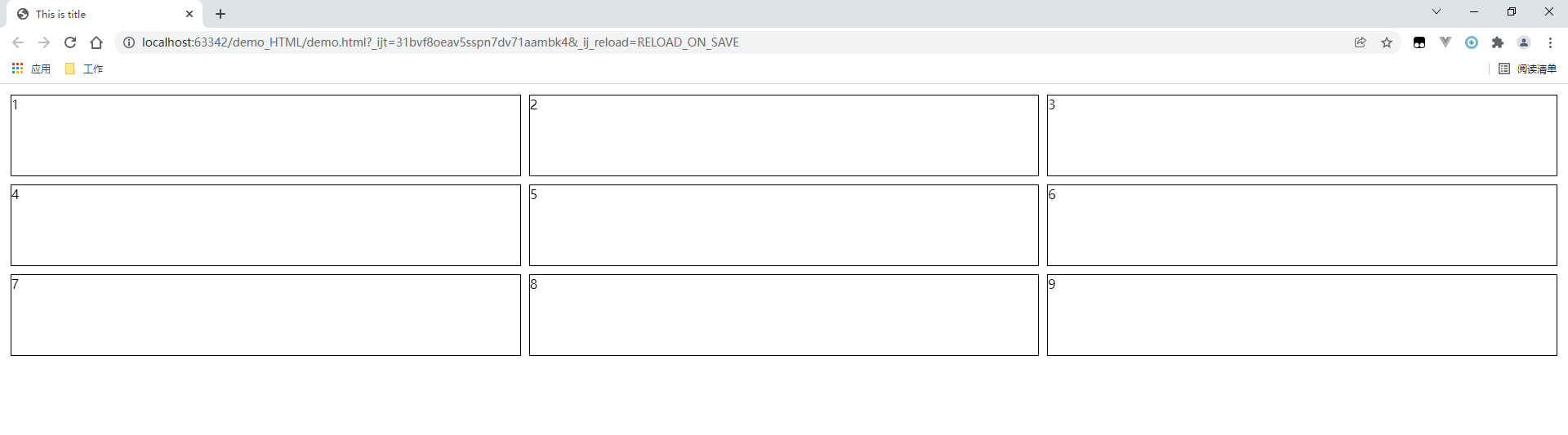

结果
方案2：flex+calc()
因为flex是面向一维的，所以我们需要加上calc这个函数控制其垂直方向。
代码
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>This is title</title>
<style>
.container {
width: 100%;
display: flex;
/*换行*/
flex-wrap: wrap;
}
.item {
width: calc(calc(100% / 3) - 10px);
height: 100px;
margin: 5px;
box-sizing: border-box;
border: 1px solid black;
</style>
</head>
<body>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</div>
</body>
</html>
|

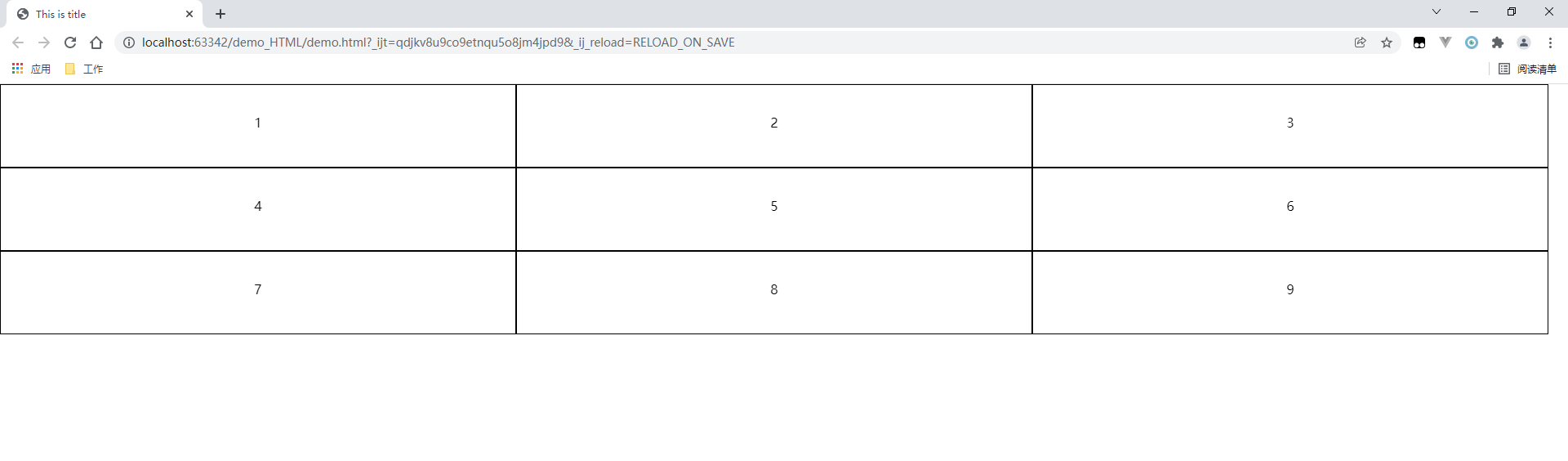

结果
方案3：absolute
代码
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
|
<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>This is title</title>
<style>
html,body{
height:100%;
margin:0;
}
.container{
position:absolute;
left:0;
top:0;
right:0;
bottom:0;
.item{
float:left;
height:100px;
width: calc(calc(100% / 3) - 10px);
position:relative;
border: 1px solid black;
.item:before{
content:'';
left:10px;
right:10px;
top:10px;
bottom:10px;
border-radius:10px;
.item:after{
content:attr(data-index);
height:30px;
margin:auto;
text-align:center;
</style>
</head>
<body>
<div class="container">
<div class="item" data-index="1">
</div>
<div class="item" data-index="2">
<div class="item" data-index="3">
<div class="item" data-index="4">
<div class="item" data-index="5">
<div class="item" data-index="6">
<div class="item" data-index="7">
<div class="item" data-index="8">
<div class="item" data-index="9">
</div>
</body>
</html>
|
结果
